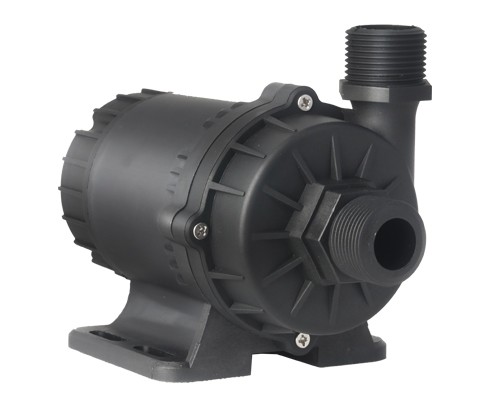

DC60G

60G

  • Impeller: Closed Impeller
  • Max head: 12m
  • Weight: 0.89kg
  • Rated voltage: 36Vdc,24Vdc,12Vdc
  • Max flow: 3800L/H
Close
Consulting
Customer service:86-755-27811557

一.Product features

1

Product name:

ZKSJ DC60G pump


2

Model

DC60G

3

Weight

0.89kg

4

Life span

≥30000h

5

Waterproof Grade

IP68

6

Color

Black

7

Certification

CE,ROSH

8

Material of pump shell

PPS+30%GF

9

Noise class

35dB

10

Leakproofness

0.8MPa8kg)

11

insulation grade

H Grade(180°)

12

Working Theory

Centrifugal Pump

13

Usage

  ECO car cooling system,

Circulating cooling system and so on

二.Range of application

1

Used liquid type

Oil, water, normal acid/alkaline liquids or other liquids

2

Used liquid temperature

-30-100(with built-in driver for non-submersible;

with external driver for submersible)

3

Speed regulation method

By PWM: amplitude 5V 50-800HZ

By 0-5V analog signal

By Potentiometer, resistor range 4.7K~20K

4

Used power

DC power supply, solar panel,batteries

三.Essential parameter (the parameter is able to be customized)

1

Specific model

DC60G-12100PWM

DC60G-12100VR

DC60G-12100S

DC60G-24120PWM

DC60G-24120VR

DC60G-24120S

DC60G-36120PWM

DC60G-36120VR

DC60G-36120S

PWM:PWM speed regulation(50-800HZ/ 5V)

VR:0~5V/potentiometer speed regulation

S:fixed speed

2

Rated voltage

12V DC

24V DC

36V DC


3

Working voltage

5-12V

5-28V

5-40V

In this voltage range, pump can work normally

4

Rated current

5.4A(6.6A)

4.5A(5A)

3A(3.3A)

Closed outlet current(Open pumping current)

5

Input power

65W(80W)

108W(120W)

108W(120W)

Closed outlet power (open pumping power)

6

Max flow rate

3200L/H

3800L/H

3800L/H

Flow rate without lifting height(horizontal flow rate)

7

Max. Head

10M

12M

12M

Static head

8

Min. Input current

12V-7A

24V-6A

36V-4A


四.Additional function instructions

1

K-Jam protection

When the pump is stuck, it will stop working

2

Water shortage/Dry run protection

When the pump is short of water or idling, the pump will cyclically stop (8 seconds) and run (2 seconds), and the protection strategy can be customized

3

Overloading protection

When the voltage is unstable or exceeds the rated power, the pump stops running.

4

Power reverse connection

wrong connection of the power supply(positive and negative), the water pump stops running, and then re-connected, can work normally.




Pump with built-in driver


For external use




Pump with external driver



Suitable for high temperature or corrosive solution submersible installation

Dimensions of pump


图片关键词
