Note : Parameters are for reference only. Please refer to the official product page for the latest data.
Units : Vdc , A , m , L/H , L/min , W
| Model number | Voltage (Vdc) | maximum head (m) | maximum flow | Water inlet diameter | Water outlet diameter | speed regulation | Idle/stuck protection |
|---|---|---|---|---|---|---|---|

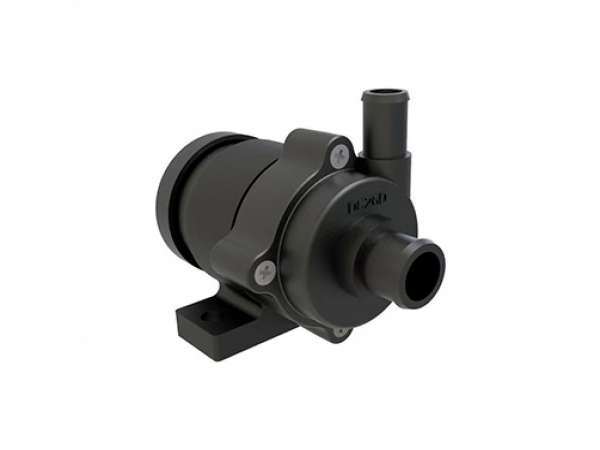

| DC26D | 4.8-16V | 4m | 8L/MIN | 12mm | 8mm | PWM/0-5V/Manual | Optional |

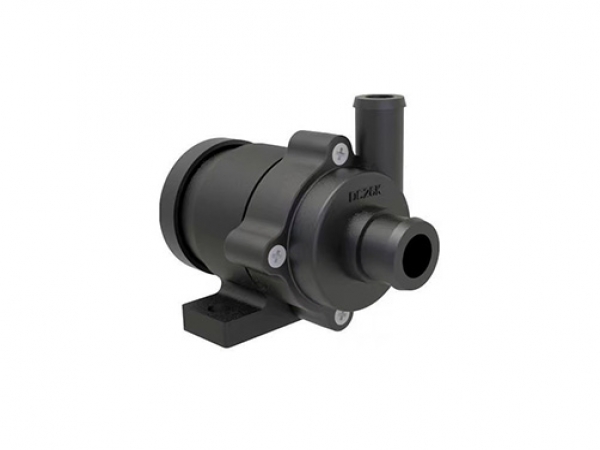

| DC26K | 4.8-16V | 4m | 8L/MIN | 14mm | 10mm | PWM/0-5V/Manual | Optional |

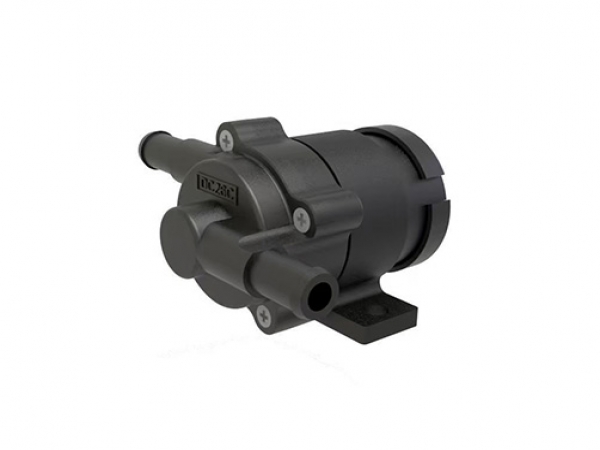

| DC26C | 4.8-16V | 4m | 5L/MIN | 8mm | 8mm | PWM/0-5V/Manual | Optional |
| DC30A | 8-16V | 3m | 4L/MIN | 8mm | 8mm | Customise | Optional |
| DC35 | 4.8-16V | 1.8m | 3.3L/MIN | 10mm | 10mm | Customise | Optional |
| DC40 | 8-26V | 8m | 11L/MIN | 14mm | 10mm | 0-5V/Manual | Optional |
| DC40A | 8-26V | 6m | 14L/MIN | 14mm | 14mm | 0-5V/Manual | Optional |
| DC40C | 8-26V | 6m | 15L/MIN | 4-point thread | 4-point thread | 0-5V/Manual | Optional |
| DC40D | 8-26V | 8m | 11L/MIN | 10mm | 10mm | 0-5V/Manual | Optional |
| DC40F | 8-26V | 6m | 16L/MIN | 4-point thread | 4-point thread | 0~5V/Manual | Optional |
| DC40H | 8-26V | 11m | 7.5L/MIN | 11mm | 8mm | 0-5V/Manual | Optional |
| DC40M | 8-26V | 3.5m | 8.8L/MIN | 13mm | 11mm | PWM/0-5V/Manual | Optional |
| DC40K | 4.8-16V | 2m | 10.8L/MIN | 10mm | 10mm | PWM/0-5V/Manual | Optional |
| DC45A | 8-28V | 12m | 14L/MIN | 12mm | 12mm | PWM/0-5V/Manual | Optional |
| DC45B | 8-28V | 12m | 14L/MIN | 10mm | 10mm | PWM/0-5V/Manual | Optional |
| DC45C | 8-28V | 8m | 20L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC45D | 8-28V | 9m | 22.5L/MIN | 14mm | 14mm | PWM/0-5V/Manual | Optional |
| DC45E | 8-28V | 9m | 22.5L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC45I | 8-28V | 12m | 14L/MIN | 4-point thread | 2-point thread | PWM/0-5V/Manual | Optional |
| DC45K | 8-28V | 6m | 23.3L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC50A | 8-28V | 5m | 60L/MIN | 27m | 27m | PWM/0-5V/Manual | Optional |
| DC50B | 8-28V | 13m | 30L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC50C | 8-28V | 6.5m | 42L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC50D | 8-28V | 8m | 45L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC50E | 8-28V | 15m | 25L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC50F | 8-28V | 15m | 25L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC50G | 8-28V | 8m | 40L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC50H | 8-28V | 20m | 10L/MIN | 14mm | 7mm | PWM/0-5V/Manual | Optional |
| DC50K | 8-28V | 16m | 23L/MIN | 14mm | 14mm | PWM/0-5V/Manual | Optional |
| DC50M | 8-28V | 13m | 23L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC55A | 8-40V | 16m | 30L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC55B | 8-40V | 16m | 40L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC55E | 8-40V | 16m | 40L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC55F | 8-40V | 16m | 30L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC55I | 8-40V | 20m | 13L/MIN | 12mm | 10mm | PWM/0-5V/Manual | Optional |
| DC55K | 8-28V | 25m | 9.1L/MIN | 10mm | 10mm | PWM/0-5V/Manual | Optional |
| DC55JB | 8-40V | 32m | 33L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC55JE | 8-40V | 32m | 33L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC56B | 8-40V | 14m | 45L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC56E | 8-40V | 14m | 45L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC60B | 8-40V | 12m | 63L/MIN | 25mm | 25mm | PWM/0-5V/Manual | Optional |
| DC60D | 8-40V | 12m | 63L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC60E | 8-40V | 12m | 63L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC60G | 8-40V | 12m | 63L/MIN | 6-point thread | 6-point thread | PWM/0-5V/Manual | Optional |
| DC65A | 8-28V | 25m | 33.3L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC65D | 8-28V | 25m | 41.6L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC65C | 8-28V | 25m | 33.3L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC65E | 8-28V | 25m | 41.6L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC65JB | 8-40V | 46m | 41.6L/MIN | 20mm | 20mm | PWM/0-5V/Manual | Optional |
| DC65JE | 8-40V | 46m | 41.6L/MIN | 4-point thread | 4-point thread | PWM/0-5V/Manual | Optional |
| DC80D | 8-56V | 10m | 133L/MIN | 38mm | 38mm | PWM/0-5V/Manual | Optional |
| DC80E | 8-56V | 10m | 133L/MIN | 1-inch thread | 1-inch thread | PWM/0-5V/Manual | Optional |
| DC85D | 8-56V | 10m | 225L/MIN | 38mm | 38mm | PWM/0-5V/Manual | Optional |
| DC85E | 8-56V | 10m | 225L/MIN | 1-inch 2-fen thread | 1-inch 2-fen thread | PWM/0-5V/Manual | Optional |
| DC/AC95A | 8-56V 220-235V |
45m | 100L/MIN | 25mm | 25mm | PWM/0-5V/Manual AC without speed regulation |
Optional |

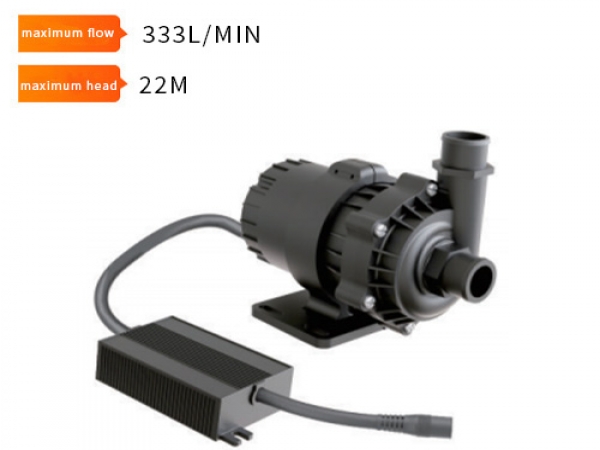

| DC/AC95D | 8-56V 220-235V |
22m | 333.3L/MIN | 38mm | 38mm | PWM/0-5V/Manual AC without speed regulation |
Optional |

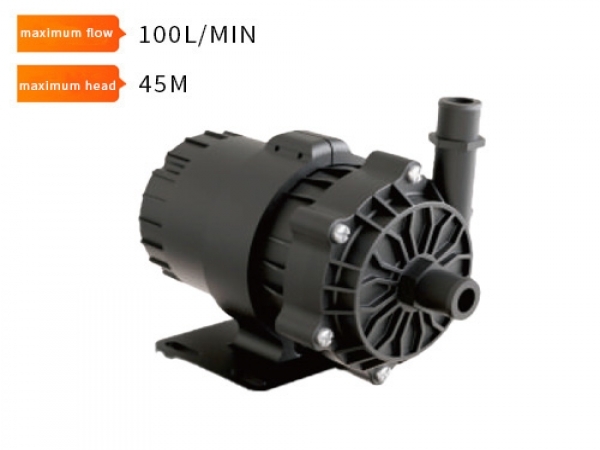

| DC/AC95E | 8-56V 220-235V |
45m | 100L/MIN | 6-point thread | 6-point thread | PWM/0-5V/Manual AC without speed regulation |
Optional |
| DC/AC95D | 8-56V 220-235V |
22m | 333.3L/MIN | 1-inch 2-fen thread | 1-inch 2-fen thread | PWM/0-5V/Manual AC without speed regulation |
Optional |
Selection Notes :
1 . Listed current is the open-flow current.After connecting to a system, working current drops to about 70–85% of the max load current.
2 . Max head is the maximum water delivery height; flow is zero at max head.Flow is horizontal pumping flow unless otherwise noted.
3 . Pumps above 24W are not recommended for continuous operation above 60°C water temperature. Before selection, confirm continuous working time, water temperature, and medium.
4 . Many models are available with PWM, 0–5V analog signal, or potentiometer speed control.
5 . Optional protections: dry-run protection, no-load protection, locked-rotor protection, and stall protection.
